• 6 on-board zones
• Expandable to 16 hardwired zones
• Expandable to 32 wireless zones
• 2 PGM outputs: expandable to 14 (PC5204, PC5208)
• Connect up to 8 supervised keypads
• Supports wire free keypads with TR5164-433 transceiver
• Template programming
• 2 partitions
• 500-event buffer
• 48 user codes
• CP-01 compliant
• Compatible with leading edge interactive services supported by DSC

8 on-board zones
Expandable to 32 hardwired zones
Expandable to 32 wireless zones
2 PGM outputs: expandable to 14 (PC5204, PC5208)
Connect up to 8 supervised keypads
Template programming
4 partitions
500-event buffer
72 user codes
CP-01 compliant
Supports wire free keypads with TR5164-433 transceiver

• 8 on-board zones
• Expandable to 64 hardwired zones
• Expandable to 64 wireless zones
• 4 PGM outputs: expandable to 14 (PC5204, PC5208)
• Template programming
• Connect up to 8 supervised keypads
• 8 partitions
• 500-event buffer
• 95 user codes
• CP-01 compliant
• Supports wire free keypads with TR5164-433 transceiver
• Compatible with leading edge interactive services supported by DSC

• 16 on-board zones
• Expandable up to 128 zones using hardwire, wireless modules and addressable zones
• Supports up to 16 hardwired keypads
• 8 partitions
• Expandable to 64 wireless zones
• 1,500 user codes (4 or 6 digit)
• 3,000 event buffer
• 9 account and 3 phone numbers
• Built-in telephone line and siren supervision
• Auto SIA and Contact ID formats
• Supports GSM and T-Link™ alarm communicators
• Full upload/download support with DLS2002 software
• COMBUS hardwired expansion

• 32 wireless zones, 16 wireless keys (without using a zone slot)
• Template programming
• 17 user codes
• Account code error checking
• Alternate communications via internet
• Onboard siren at 85dB
• 2 Input/Output terminals
• 200mA Aux Output
• 500 event buffer
• 24Hr Battery backup
• Wall and case tamper
• Independent opening and closing door chime control
• Seamless quick enroll and placement testing

  http://cms.dsc.com/download.php?t=1&id=16871

• Available in 13 languages
• Global Partition Status
• Full 32-character programmable labels
• Modern, slim-line landscape keypad
• Enlarged keypad buttons
• 5 programmable function keys
• Intuitive clock programming*
• Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor
• 3 one-touch emergency keys
• Multiple door chime per zone
• Adjustable backlight and keypad buzzer
• Wire channel
• Dual wall-mount and front cover tamper
• Easy-to-install mounting hinge
• Surface or single-gang box mount
• AC status ICON
• v1.3 includes easy wireless device enrollment process with v4.6 panel and pre-programmed label libaries (English, French and Spanish)

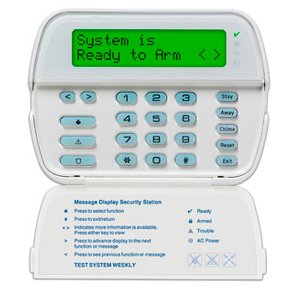

• RFK5500 and NEW RFK5500-868 includes all of the same features and supports 32 wireless zones and 16 wireless keys
• RFK5564 includes all of the same features and supports 64 wireless zones and 16 wireless keys
